Copper Ham radio plate

This is a through the wall grounding/connection plate made for a customer's Ham radio "shack". He really wanted the layout just right with just enough finger room for attaching cables, so I laid it out in CAD to ensure it was exactly to his liking. Once we had agreed on the layout it was just a matter of accurately drilling a bunch of holes in 0.125" copper plate.

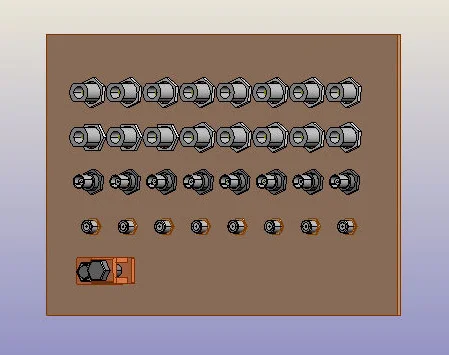

CAD layout of the connectors

CAD layout of the connectors

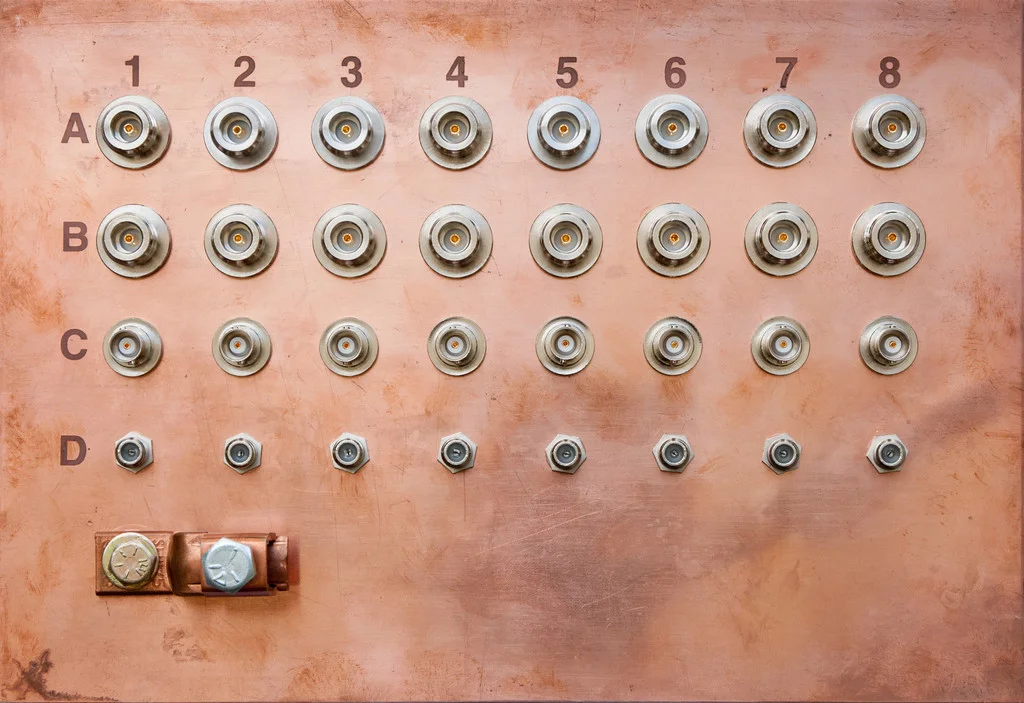

Completed panel

Completed panel

Panel installed

Panel installed
